Salve a tutti
ho cercato di modificare il bootloader per espandere i 4M di flash in cui sono confinato... senza successo

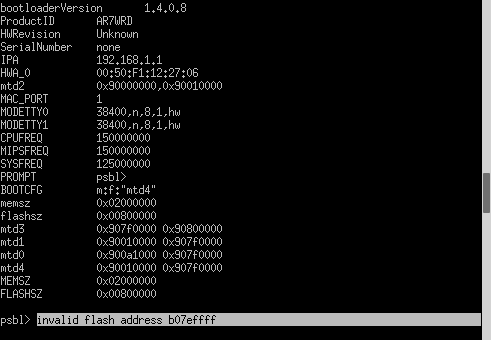

Oltretutto ho scoperto che se provo a cambiare qualche impostazione che non gli va a genio resetta completamente tutte le impostazioni.
Allora mi sono scaricato la repo di OpenWRT e mi sono dato da fare e ragazzi ci siamo!!!!

Dopo giorni passati a compilare e flashare ho trovato la giusta combinazione delle mtd e la giusta configurazione per un firmware bootabile (ah non abbiate paura di abusare del comando
defragenv salva la vita anche quando meno ve lo aspettate

).
Questi sono i settaggi fatti al botloader
Basic POST completed... Success.
Last reset cause: Software reset (memory controller also reset)
PSPBoot 1.4 rev: 1.4.0.8
(c) Copyright 2002-2009 Texas Instruments, Inc. All Rights Reserved.
Press ESC for monitor..09
psbl> printenv
BUILD_OPS 0x201
bootloaderVersion 1.4.0.8
ProductID AR7WRD
HWRevision Unknown
SerialNumber none
IPA 192.168.1.1
HWA_0 00:50:F1:12:27:06
mtd2 0x90000000,0x90010000
mtd3 0x90010000,0x90020000
mtd0 0x900B1000,0x90400000
mtd1 0x90020000,0x90400000
mtd4 0x90020000,0x90400000
MAC_PORT 1
MODETTY0 38400,n,8,1,hw
MODETTY1 38400,n,8,1,hw
CPUFREQ 150000000
MIPSFREQ 150000000
SYSFREQ 125000000
PROMPT psbl>
MEMSZ 0x01000000
FLASHSZ 0x00400000
BOOTCFG m:f:"mtd4"
psbl> info
CHIP ID: TNETD73XX (0x5), REV: 0x22
MIPS Processor : 4KEc rev: 2.2.0
Cache mode : write-back, write-allocate.
Instruction cache: Associativity: 4, Line size: 16, Total size: 16KB
Data cache : Associativity: 4, Line size: 16, Total size: 16KB
Last reset cause: Software reset (memory controller also reset)
EMIF is running at the same speed of the processor.
Processor running in little endian mode.
Processor clock is asynchronous to internal bus clock.
psbl> fa
Current Flash Allocation:
section : PSBL, base : 0xb0000000, size : 64336 bytes
section : ENV, base : 0xb0010000, size : 65535 bytes
unallocated Space Start: 0xb0020000
unallocated Space End : 0xb0400000
Seguendo questa guida
https://openwrt.org/docs/guide-user/additional-software/saving_space ho alleggerito la versione di OpenWRT 18.06, appena 3,7Mb

Ma anche se il boot avviene correttamente il router non risponde al ping

anche con IP statico, ho aspettato ore, l'unico modo che ho per interagire è tramite la seriale.
Ecco un po' di dati
[email protected]:~# ifconfig
br-lan Link encap:Ethernet HWaddr 00:50:F1:12:27:06
inet addr:192.168.1.1 Bcast:192.168.1.255 Mask:255.255.255.0
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:3 errors:0 dropped:0 overruns:0 frame:0
TX packets:4 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:138 (138.0 B) TX bytes:492 (492.0 B)
eth0 Link encap:Ethernet HWaddr 00:50:F1:12:27:06
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:3 errors:0 dropped:0 overruns:0 frame:0
TX packets:5 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:180 (180.0 B) TX bytes:1535 (1.4 KiB)
Interrupt:41
eth1 Link encap:Ethernet HWaddr 00:50:F1:12:27:06
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:2 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:384 (384.0 B)
Interrupt:27
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:132 errors:0 dropped:0 overruns:0 frame:0
TX packets:132 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:8976 (8.7 KiB) TX bytes:8976 (8.7 KiB)
[email protected]:~# df
Filesystem 1K-blocks Used Available Use% Mounted on
/dev/root 2368 2368 0 100% /rom
tmpfs 14264 52 14212 0% /tmp
tmpfs 14264 52 14212 0% /tmp/root
tmpfs 512 0 512 0% /dev
/dev/mtdblock4 384 228 156 59% /overlay
overlayfs:/overlay 384 228 156 59% /

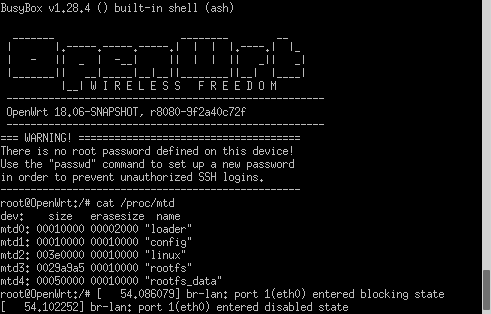

[email protected]:~# cat /proc/mtd
dev: size erasesize name
mtd0: 00010000 00002000 "loader"
mtd1: 00010000 00010000 "config"
mtd2: 003e0000 00010000 "linux"
mtd3: 002b1060 00010000 "rootfs"
mtd4: 00060000 00010000 "rootfs_data"
[email protected]:~# free
total used free shared buffers cached
Mem: 28528 16700 11828 104 1816 6052
-/+ buffers/cache: 8832 19696
Swap: 13308 0 13308
[email protected]:~# uname -a
Linux OpenWrt 4.9.243 #0 Tue Nov 24 09:03:27 2020 mips GNU/Linux
[email protected]:~# cat /proc/cpuinfo
system type : TI AR7 (TNETD7300)
machine : Unknown
processor : 0
cpu model : MIPS 4KEc V4.8
BogoMIPS : 148.88
wait instruction : yes
microsecond timers : yes
tlb_entries : 16
extra interrupt vector : yes
hardware watchpoint : yes, count: 1, address/irw mask: [0x0fff]
isa : mips1 mips2 mips32r1
ASEs implemented :
shadow register sets : 1
kscratch registers : 0
package : 0
core : 0
VCED exceptions : not available
VCEI exceptions : not available
network
[email protected]:/etc/config# cat network
config interface 'loopback'
option ifname 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config interface 'lan'
option type 'bridge'
option ifname 'eth0 eth1'
option proto 'static'
option ipaddr '192.168.1.1'
option netmask '255.255.255.0'
dhcp
[email protected]:/etc/config# cat dhcp
config dnsmasq
option domainneeded 1
option boguspriv 1
option filterwin2k 0 # enable for dial on demand
option localise_queries 1
option rebind_protection 1 # disable if upstream must serve RFC1918 add resses
option rebind_localhost 1 # enable for RBL checking and similar service s
#list rebind_domain example.lan # whitelist RFC1918 responses for domai ns
option local '/lan/'
option domain 'lan'
option expandhosts 1
option nonegcache 0
option authoritative 1
option readethers 1
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.auto'
#list server '/mycompany.local/1.2.3.4'
option nonwildcard 1 # bind to & keep track of interfaces
#list interface br-lan
#list notinterface lo
#list bogusnxdomain '64.94.110.11'
option localservice 1 # disable to allow DNS requests from non-loca l subnets
config dhcp lan
option interface lan
option start 100
option limit 150
option leasetime 12h
config dhcp wan
option interface wan
option ignore 1
firewall
[email protected]:/etc/config# cat firewall
config defaults
option syn_flood 1
option input ACCEPT
option output ACCEPT
option forward REJECT
# Uncomment this line to disable ipv6 rules
# option disable_ipv6 1
config zone
option name lan
list network 'lan'
option input ACCEPT
option output ACCEPT
option forward ACCEPT
config zone
option name wan
list network 'wan'
list network 'wan6'
option input REJECT
option output ACCEPT
option forward REJECT
option masq 1
option mtu_fix 1
config forwarding
option src lan
option dest wan
# We need to accept udp packets on port 68,
# see https://dev.openwrt.org/ticket/4108
config rule
option name Allow-DHCP-Renew
option src wan
option proto udp
option dest_port 68
option target ACCEPT
option family ipv4
# Allow IPv4 ping
config rule
option name Allow-Ping
option src wan
option proto icmp
option icmp_type echo-request
option family ipv4
option target ACCEPT
config rule
option name Allow-IGMP
option src wan
option proto igmp
option family ipv4
option target ACCEPT
# Allow DHCPv6 replies
# see https://dev.openwrt.org/ticket/10381
config rule
option name Allow-DHCPv6
option src wan
option proto udp
option src_ip fc00::/6
option dest_ip fc00::/6
option dest_port 546
option family ipv6
option target ACCEPT
config rule
option name Allow-MLD
option src wan
option proto icmp
option src_ip fe80::/10
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family ipv6
option target ACCEPT
# Allow essential incoming IPv6 ICMP traffic
config rule
option name Allow-ICMPv6-Input
option src wan
option proto icmp
list icmp_type echo-request
list icmp_type echo-reply
list icmp_type destination-unreachable
list icmp_type packet-too-big
list icmp_type time-exceeded
list icmp_type bad-header
list icmp_type unknown-header-type
list icmp_type router-solicitation
list icmp_type neighbour-solicitation
list icmp_type router-advertisement
list icmp_type neighbour-advertisement
option limit 1000/sec
option family ipv6
option target ACCEPT
# Allow essential forwarded IPv6 ICMP traffic
config rule
option name Allow-ICMPv6-Forward
option src wan
option dest *
option proto icmp
list icmp_type echo-request
list icmp_type echo-reply
list icmp_type destination-unreachable
list icmp_type packet-too-big
list icmp_type time-exceeded
list icmp_type bad-header
list icmp_type unknown-header-type
option limit 1000/sec
option family ipv6
option target ACCEPT
config rule
option name Allow-IPSec-ESP
option src wan
option dest lan
option proto esp
option target ACCEPT
config rule
option name Allow-ISAKMP
option src wan
option dest lan
option dest_port 500
option proto udp
option target ACCEPT
# include a file with users custom iptables rules
config include
option path /etc/firewall.user
### EXAMPLE CONFIG SECTIONS
# do not allow a specific ip to access wan
#config rule
# option src lan
# option src_ip 192.168.45.2
# option dest wan
# option proto tcp
# option target REJECT
# block a specific mac on wan
#config rule
# option dest wan
# option src_mac 00:11:22:33:44:66
# option target REJECT
# block incoming ICMP traffic on a zone
#config rule
# option src lan
# option proto ICMP
# option target DROP
# port redirect port coming in on wan to lan
#config redirect
# option src wan
# option src_dport 80
# option dest lan
# option dest_ip 192.168.16.235
# option dest_port 80
# option proto tcp
# port redirect of remapped ssh port (22001) on wan
#config redirect
# option src wan
# option src_dport 22001
# option dest lan
# option dest_port 22
# option proto tcp
### FULL CONFIG SECTIONS
#config rule
# option src lan
# option src_ip 192.168.45.2
# option src_mac 00:11:22:33:44:55
# option src_port 80
# option dest wan
# option dest_ip 194.25.2.129
# option dest_port 120
# option proto tcp
# option target REJECT
#config redirect
# option src lan
# option src_ip 192.168.45.2
# option src_mac 00:11:22:33:44:55
# option src_port 1024
# option src_dport 80
# option dest_ip 194.25.2.129
# option dest_port 120
# option proto tcp
wireless
[email protected]:/etc/config# cat wireless
config wifi-device 'radio0'
option type 'mac80211'
option channel '11'
option hwmode '11g'
option path 'platform/vlynq.0/vlynq0'
option disabled '1'
config wifi-iface 'default_radio0'
option device 'radio0'
option network 'lan'
option mode 'ap'
option ssid 'OpenWrt'
option encryption 'none'
dmesg
[email protected]:/etc/config# dmesg
[ 0.000000] Linux version 4.9.243 ([email protected]) (gcc version 7.3.0 (OpenWrt GCC 7.3.0 r8080-9f2a40c72f) ) #0 Tue Nov 24 09:03:27 2020
[ 0.000000] bootconsole [early0] enabled
[ 0.000000] CPU0 revision is: 00018448 (MIPS 4KEc)
[ 0.000000] TI AR7 (TNETD7300), ID: 0x0005, Revision: 0x22
[ 0.000000] Determined physical RAM map:
[ 0.000000] memory: 02000000 @ 14000000 (usable)
[ 0.000000] Initrd not found or empty - disabling initrd
[ 0.000000] Primary instruction cache 16kB, VIPT, 4-way, linesize 16 bytes.
[ 0.000000] Primary data cache 16kB, 4-way, VIPT, no aliases, linesize 16 bytes
[ 0.000000] Zone ranges:
[ 0.000000] Normal [mem 0x0000000014000000-0x0000000015ffffff]
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000014000000-0x0000000015ffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000014000000-0x0000000015ffffff]
[ 0.000000] On node 0 totalpages: 8192
[ 0.000000] free_area_init_node: node 0, pgdat 9449c044, node_mem_map 95000020
[ 0.000000] Normal zone: 64 pages used for memmap
[ 0.000000] Normal zone: 0 pages reserved
[ 0.000000] Normal zone: 8192 pages, LIFO batch:0
[ 0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
[ 0.000000] pcpu-alloc: [0] 0
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 8128
[ 0.000000] Kernel command line: console=ttyS0,38400n8 rootfstype=squashfs,jffs2
[ 0.000000] PID hash table entries: 128 (order: -3, 512 bytes)
[ 0.000000] Dentry cache hash table entries: 4096 (order: 2, 16384 bytes)
[ 0.000000] Inode-cache hash table entries: 2048 (order: 1, 8192 bytes)
[ 0.000000] Memory: 27376K/32768K available (2926K kernel code, 147K rwdata, 628K rodata, 132K init, 198K bss, 5392K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[ 0.000000] NR_IRQS:256
[ 0.000000] Clocks: prediv: 1, postdiv: 1, mul: 10
[ 0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 25483472618 ns
[ 0.000044] sched_clock: 32 bits at 75MHz, resolution 13ns, wraps every 28633115129ns
[ 0.024312] Calibrating delay loop... 148.88 BogoMIPS (lpj=744448)
[ 0.113213] pid_max: default: 32768 minimum: 301
[ 0.128030] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.148142] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.186194] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.216306] futex hash table entries: 256 (order: -1, 3072 bytes)
[ 0.238058] NET: Registered protocol family 16
[ 0.353746] clocksource: Switched to clocksource MIPS
[ 0.375195] NET: Registered protocol family 2
[ 0.392485] TCP established hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.414036] TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.433447] TCP: Hash tables configured (established 1024 bind 1024)
[ 0.454152] UDP hash table entries: 256 (order: 0, 4096 bytes)
[ 0.472008] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[ 0.492215] NET: Registered protocol family 1
[ 0.534197] ar7-gpio: registered 32 GPIOs
[ 0.629416] No memory allocated for crashlog
[ 0.657714] workingset: timestamp_bits=30 max_order=13 bucket_order=0
[ 0.712237] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.730018] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.838742] io scheduler noop registered
[ 0.850612] io scheduler deadline registered (default)
[ 0.867074] Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled
[ 0.887120] serial8250: ttyS0 at MMIO 0x8610e00 (irq = 15, base_baud = 3906250) is a AR7
[ 0.911986] console [ttyS0] enabled
[ 0.932998] bootconsole [early0] disabled
[ 0.958365] serial8250: ttyS1 at MMIO 0x8610f00 (irq = 16, base_baud = 3906250) is a AR7
[ 0.986972] physmap platform flash device: 02000000 at 10000000
[ 1.005489] physmap-flash.0: Found 1 x16 devices at 0x0 in 16-bit bank. Manufacturer ID 0x0000ec Chip ID 0x0022a2
[ 1.036866] physmap-flash.0: Found an alias at 0x400000 for the chip at 0x0
[ 1.036919] physmap-flash.0: Found an alias at 0x800000 for the chip at 0x0
[ 1.036964] physmap-flash.0: Found an alias at 0xc00000 for the chip at 0x0
[ 1.037009] physmap-flash.0: Found an alias at 0x1000000 for the chip at 0x0
[ 1.037053] physmap-flash.0: Found an alias at 0x1400000 for the chip at 0x0
[ 1.037098] physmap-flash.0: Found an alias at 0x1800000 for the chip at 0x0
[ 1.037143] physmap-flash.0: Found an alias at 0x1c00000 for the chip at 0x0
[ 1.037227] Amd/Fujitsu Extended Query Table at 0x0040
[ 1.053045] Fixing Samsung's Amd/Fujitsu Extended Query version to 1.3
[ 1.073560] Amd/Fujitsu Extended Query version 1.3.
[ 1.089092] number of CFI chips: 1
[ 1.111890] 4 ar7part partitions found on MTD device physmap-flash.0
[ 1.131453] Creating 4 MTD partitions on "physmap-flash.0":
[ 1.148604] 0x000000000000-0x000000010000 : "loader"
[ 1.175835] 0x000000010000-0x000000020000 : "config"
[ 1.204316] 0x000000020000-0x000000400000 : "linux"
[ 1.232178] 0x00000014efa0-0x000000400000 : "rootfs"
[ 1.257435] mtd: device 3 (rootfs) set to be root filesystem
[ 1.274993] 1 squashfs-split partitions found on MTD device rootfs
[ 1.294016] 0x0000003a0000-0x000000400000 : "rootfs_data"
[ 1.344140] libphy: Fixed MDIO Bus: probed
[ 1.786274] libphy: cpmac-mii: probed
[ 1.880078] cpmac cpmac.1: regs: 08612800, irq: 41, phy: fixed-0:01, mac: 00:50:f1:12:27:06
[ 1.990149] cpmac cpmac.0: regs: 08610000, irq: 27, phy: fixed-0:00, mac: 00:50:f1:12:27:06
[ 2.018705] vlynq0: regs 0x08611800, irq 29, mem 0x04000000
[ 2.410911] vlynq0: local VLYNQ protocol rev. is 0x0001010b
[ 2.428034] vlynq0: remote VLYNQ protocol rev. is 0x00010108
[ 2.445408] vlynq0: using local clock divisor 8
[ 2.573832] Found a VLYNQ device: 00000009
[ 2.587187] vlynq1: regs 0x08611c00, irq 33, mem 0x0c000000
[ 2.993785] random: fast init done
[ 3.855710] NET: Registered protocol family 17
[ 3.869834] 8021q: 802.1Q VLAN Support v1.8
[ 3.904763] VFS: Mounted root (squashfs filesystem) readonly on device 31:3.
[ 3.953395] Freeing prom memory: 1020k freed
[ 3.970063] Freeing unused kernel memory: 132K
[ 3.983837] This architecture does not have kernel memory protection.
[ 5.355029] init: Console is alive
[ 6.786665] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 6.810303] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 6.844574] init: - preinit -
[ 8.393663] random: jshn: uninitialized urandom read (4 bytes read)
[ 8.599642] random: jshn: uninitialized urandom read (4 bytes read)
[ 8.751622] random: jshn: uninitialized urandom read (4 bytes read)
[ 9.089269] cpmac cpmac.1 eth0: Link is Up - 100Mbps/Full - flow control off
[ 12.811596] mount_root: loading kmods from internal overlay
[ 12.919971] kmodloader: loading kernel modules from //etc/modules-boot.d/*
[ 12.943249] kmodloader: done loading kernel modules from //etc/modules-boot.d/*
[ 13.749705] block: attempting to load /etc/config/fstab
[ 13.766990] block: unable to load configuration (fstab: Entry not found)
[ 13.788114] block: no usable configuration
[ 13.804423] mount_root: jffs2 not ready yet, using temporary tmpfs overlay
[ 13.917417] urandom-seed: Seed file not found (/etc/urandom.seed)
[ 14.258507] procd: - early -
[ 14.416204] cpmac cpmac.1 eth0: Link is Down
[ 15.186337] procd: - ubus -
[ 15.584711] urandom_read: 1 callbacks suppressed
[ 15.584748] random: ubusd: uninitialized urandom read (4 bytes read)
[ 15.842322] random: ubusd: uninitialized urandom read (4 bytes read)
[ 16.181593] random: ubusd: uninitialized urandom read (4 bytes read)
[ 16.210325] procd: - init -
[ 17.482432] kmodloader: loading kernel modules from /etc/modules.d/*
[ 17.535264] zram: Added device: zram0
[ 17.598924] Loading modules backported from Linux version wt-2017-11-01-0-gfe248fc2c180
[ 17.623478] Backport generated by backports.git v4.14-rc2-1-31-g86cf0e5d
[ 17.777872] nf_conntrack version 0.5.0 (1024 buckets, 4096 max)
[ 18.074244] xt_time: kernel timezone is -0000
[ 18.253363] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 18.864390] PPP generic driver version 2.4.2
[ 18.890087] NET: Registered protocol family 24
[ 18.935485] acx.acx_init_module: acx-mac80211, version: v0.6.0 (git: unknown)
[ 18.957425] acx.acx_init_module: this driver is still EXPERIMENTAL
[ 18.957425] acx: please read the README file and/or go to http://acx100.sourceforge.net/wiki for further information
[ 19.008353] acx.acxpci_init_module: built with CONFIG_ACX_MAC80211_PCI
[ 19.028385] acx.acxpci_init_module: compiled to use 32bit I/O access. I/O timing issues might occur, such as non-working firmware upload. Report them
[ 19.069181] acx.acxpci_init_module: acx: running on a little-endian CPU
[ 19.069181] PCI/VLYNQ module initialized, waiting for cards to probe...
[ 19.109877] Driver found for VLYNQ device: 00000009
[ 19.125410] acx.acx_alloc_hw: wiphy: phy0
[ 19.137350] acx.acx_init_mechanics: ie_cmd_buf_len=336
[ 19.521142] vlynq0: local VLYNQ protocol rev. is 0x0001010b
[ 19.538267] vlynq0: remote VLYNQ protocol rev. is 0x00010108
[ 19.555637] vlynq0: using local clock divisor 1
[ 19.569848] acx.vlynq_probe: found TI TNETW1130-based wireless network card at vlynq0, irq:80, phymem:0x4000000, mem:0xa4000000
[ 19.604862] acx.vlynq_probe: the initial debug setting is 0x000A
[ 19.623320] acx.vlynq_probe: using IRQ 80
[ 19.635731] acx.acx_get_hardware_info: form_factor=0x01, radio_type=0x16
[ 19.656301] acx.acxpci_load_firmware: Need firmware for acx111 chipset with radio ID 0x16: either combined firmware (single file 'tiacx111c16'), or two files: base-fw file 'tiacx111' + radio-fw file 'tiacx111r16'
[ 19.713646] acx.acx_load_firmware: Required firmware: fw_image='tiacx111c16', radio_image='(null)'
[ 19.741148] acx.acx_read_fw: requesting firmware image 'tiacx111c16'
[ 20.049037] acx._acx_upload_fw: acx_write_fw (main): 0
[ 20.128868] acx._acx_upload_fw: acx_validate_fw (main): 0
[ 20.652526] acx.acx_init_packet_templates: initializing max packet templates
[ 20.825044] acx.acx_allocate: bdev:95d50240 size:37536 phy:15ff0000 ptr:b5ff0000
[ 20.848214] acx.acx_allocate: bdev:95d50240 size:1024 phy:15f9c000 ptr:b5f9c000
[ 20.871765] acx.acx_allocate: bdev:95d50240 size:37536 phy:15440000 ptr:b5440000
[ 20.894977] acx.acx_allocate: bdev:95d50240 size:1024 phy:15f9a000 ptr:b5f9a000
[ 20.918544] acx.acx_allocate: bdev:95d50240 size:37536 phy:15450000 ptr:b5450000
[ 20.941728] acx.acx_allocate: bdev:95d50240 size:1024 phy:15fe7000 ptr:b5fe7000
[ 20.965329] acx.acx_allocate: bdev:95d50240 size:37536 phy:15460000 ptr:b5460000
[ 20.988509] acx.acx_allocate: bdev:95d50240 size:1024 phy:1556e000 ptr:b556e000
[ 21.012066] acx.acx_allocate: bdev:95d50240 size:37536 phy:15470000 ptr:b5470000
[ 21.035230] acx.acx_allocate: bdev:95d50240 size:1024 phy:15578000 ptr:b5578000
[ 21.057707] acx.acx_allocate: bdev:95d50240 size:448 phy:15579000 ptr:b5579000
[ 21.081008] acx.acx_allocate: bdev:95d50240 size:38336 phy:15480000 ptr:b5480000
[ 21.133894] acx.acx_interrogate: (type:ACX111_IE_QUEUE_CONFIG,len:56)
[ 21.173921] acx.acx111_create_dma_regions: Queue head: len=56, tx_memory_block_address=1A7A0, rx_memory_block_address=163A0
[ 21.207872] acx.acx111_create_dma_regions: Queue head: rx_queue_start=13994
[ 21.229178] acx.acx111_create_dma_regions: Queue head: tx_queue_start[0]=149D4
[ 21.251326] acx.acx111_create_dma_regions: Queue head: tx_queue_start[1]=14694
[ 21.273445] acx.acx111_create_dma_regions: Queue head: tx_queue_start[2]=14354
[ 21.295553] acx.acx111_create_dma_regions: Queue head: tx_queue_start[3]=14014
[ 21.317657] acx.acx111_create_dma_regions: Queue head: tx_queue_start[4]=13CD4
[ 21.339773] acx.acx_create_tx_desc_queue: adev->iobase2=a4022000,tx_queue_start=000149D4,tx->desc_start=a40369d4
[ 21.370306] acx.acx_create_tx_desc_queue: adev->iobase2=a4022000,tx_queue_start=00014694,tx->desc_start=a4036694
[ 21.401421] acx.acx_create_tx_desc_queue: adev->iobase2=a4022000,tx_queue_start=00014354,tx->desc_start=a4036354
[ 21.431968] acx.acx_create_tx_desc_queue: adev->iobase2=a4022000,tx_queue_start=00014014,tx->desc_start=a4036014
[ 21.463053] acx.acx_create_tx_desc_queue: adev->iobase2=a4022000,tx_queue_start=00013CD4,tx->desc_start=a4035cd4
[ 21.494035] acx.acx_interrogate: (type:ACX111_IE_CONFIG_OPTIONS,len:332)
[ 21.543969] acx.acx_parse_configoption: NVSv:
[ 21.557127] 01
[ 21.562457] 16
[ 21.567408] 05
[ 21.572734] 00
[ 21.577687] 02
[ 21.583014] 41
[ 21.587966] 01
[ 21.593290] 00
[ 21.598228]
[ 21.602812] acx.acx_parse_configoption: NVS_vendor_offs:01CD probe_delay:200 eof_memory:1114112
[ 21.629400] acx.acx_parse_configoption: CCAModes:04 Diversity:01 ShortPreOpt:01 PBCC:01 ChanAgil:00 PHY:05 Temp:01
[ 21.661007] acx.acx_parse_configoption: AntennaID:00 Len:02 Data:
[ 21.679149] 01
[ 21.684672] 02
[ 21.689461]
[ 21.694184] acx.acx_parse_configoption: PowerLevelID:01 Len:02 Data:
[ 21.713086] 001E
[ 21.719131] 000A
[ 21.724610]
[ 21.729177] acx.acx_parse_configoption: DataRatesID:02 Len:05 Data:
[ 21.747820] 02
[ 21.753148] 04
[ 21.758115] 11
[ 21.763441] 22
[ 21.768406] 44
[ 21.773913]
[ 21.778476] acx.acx_parse_configoption: DomainID:03 Len:06 Data:
[ 21.796334] 41
[ 21.801664] 20
[ 21.806630] 30
[ 21.811957] 31
[ 21.816920] 32
[ 21.822247] 40
[ 21.827193]
[ 21.831771] acx.acx_parse_configoption: ProductID:04 Len:09 Data:TI ACX100
[ 21.852838] acx.acx_parse_configoption: ManufacturerID:05 Len:07 Data:TI Test
[ 21.874697] acx.acx_interrogate: (type:ACX1xx_IE_FWREV,len:24)
[ 21.913881] acx.acx_get_firmware_version: Firmware: firmware_version='Rev 2.3.1.31' hw_id=03010101
[ 21.941299] acx.acx_display_hardware_details: chipset TNETW1130, radio type 0x16 (Radia (RC2422?)), form factor 0x01 ((mini-)PCI / CardBus), EEPROM version 0x05, uploaded firmware 'Rev 2.3.1.31'
[ 21.993898] acx.acx_interrogate: (type:ACX1xx_IE_DOT11_STATION_ID,len:6)
[ 22.043899] acx.acx1xx_get_station_id: Got station_id: 00:19:5B:2F:EB:FB
[ 22.064486] acx.acx_interrogate: (type:ACX1xx_IE_DOT11_CURRENT_ANTENNA,len:2)
[ 22.113873] acx.acx1xx_get_antenna: Got antenna[0,1]: 0x4A 0x04
[ 22.132047] acx.acx_interrogate: (type:ACX1xx_IE_DOT11_CURRENT_REG_DOMAIN,len:2)
[ 22.183930] acx.acx_get_reg_domain: Got regulatory domain 0x41
[ 22.201845] acx.acx_get_sensitivity: don't know how to get sensitivity for radio type 0x16
[ 22.227104] acx.acx_set_interrupt_mask: adev->irq_mask: before: 0 devtype:0 chiptype:2 tobe: 39157
[ 22.254463] acx.acx_update_ratevector: new ratevector:
[ 22.269951] 82
[ 22.275492] 84
[ 22.280288] 0B
[ 22.285836] 0C
[ 22.290635] 12
[ 22.296147] 16
[ 22.300939] 18
[ 22.306438] 24
[ 22.311230] 2C
[ 22.316729] 30
[ 22.321520] 48
[ 22.327019] 60
[ 22.331812] 6C
[ 22.337071] acx.acx_interrogate: (type:ACX1xx_IE_DOT11_TX_POWER_LEVEL,len:1)
[ 22.383863] acx.acx1xx_get_tx_level: Got tx-power-level: 1
[ 22.400713] acx.acx_update_hw_encryption: Enabling hw-encryption
[ 22.419134] acx.acx_interrogate: (type:ACX1xx_IE_FEATURE_CONFIG,len:8)
[ 22.494078] acx.acx_debugfs_add_adev: adev:95f214c0 nm:phy0 dirp:9589c5d8
[ 22.518006] ieee80211 phy0: Selected rate control algorithm 'minstrel_ht'
[ 22.523216] Not using the 00000009 VLYNQ device's driver for VLYNQ device: 00000000
[ 22.584733] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 32.183214] zram0: detected capacity change from 0 to 13631488
[ 32.418085] Adding 13308k swap on /dev/zram0. Priority:-1 extents:1 across:13308k SS
[ 64.809406] br-lan: port 1(eth0) entered blocking state
[ 64.825578] br-lan: port 1(eth0) entered disabled state
[ 64.843337] device eth0 entered promiscuous mode
[ 64.858978] cpmac cpmac.1 eth0: Link is Up - 100Mbps/Full - flow control off
[ 65.039927] br-lan: port 1(eth0) entered blocking state
[ 65.056087] br-lan: port 1(eth0) entered forwarding state
[ 65.589701] cpmac cpmac.0 eth1: Link is Up - 100Mbps/Full - flow control off
[ 65.710654] br-lan: port 2(eth1) entered blocking state
[ 65.726824] br-lan: port 2(eth1) entered disabled state
[ 65.744767] device eth1 entered promiscuous mode
[ 65.759384] br-lan: port 2(eth1) entered blocking state
[ 65.775512] br-lan: port 2(eth1) entered forwarding state
[ 70.003692] jffs2_scan_eraseblock(): End of filesystem marker found at 0x0
[ 70.143962] jffs2_build_filesystem(): unlocking the mtd device...
[ 70.162379] done.
[ 70.168474] jffs2_build_filesystem(): erasing all blocks after the end marker...
[ 73.431758] done.
[ 73.438018] jffs2: notice: (971) jffs2_build_xattr_subsystem: complete building xattr subsystem, 0 of xdatum (0 unchecked, 0 orphan) and 0 of xref (0 dead, 0 orphan) found.
[ 133.112029] random: crng init done
[ 133.122406] random: 3 urandom warning(s) missed due to ratelimiting
Non so che pesci pigliare, mi sembra tutto corretto, anche il wifi funziona!
Qualcuno ha un'idea? o vede qulcosa che mi è sfuggito?
Grazie.
